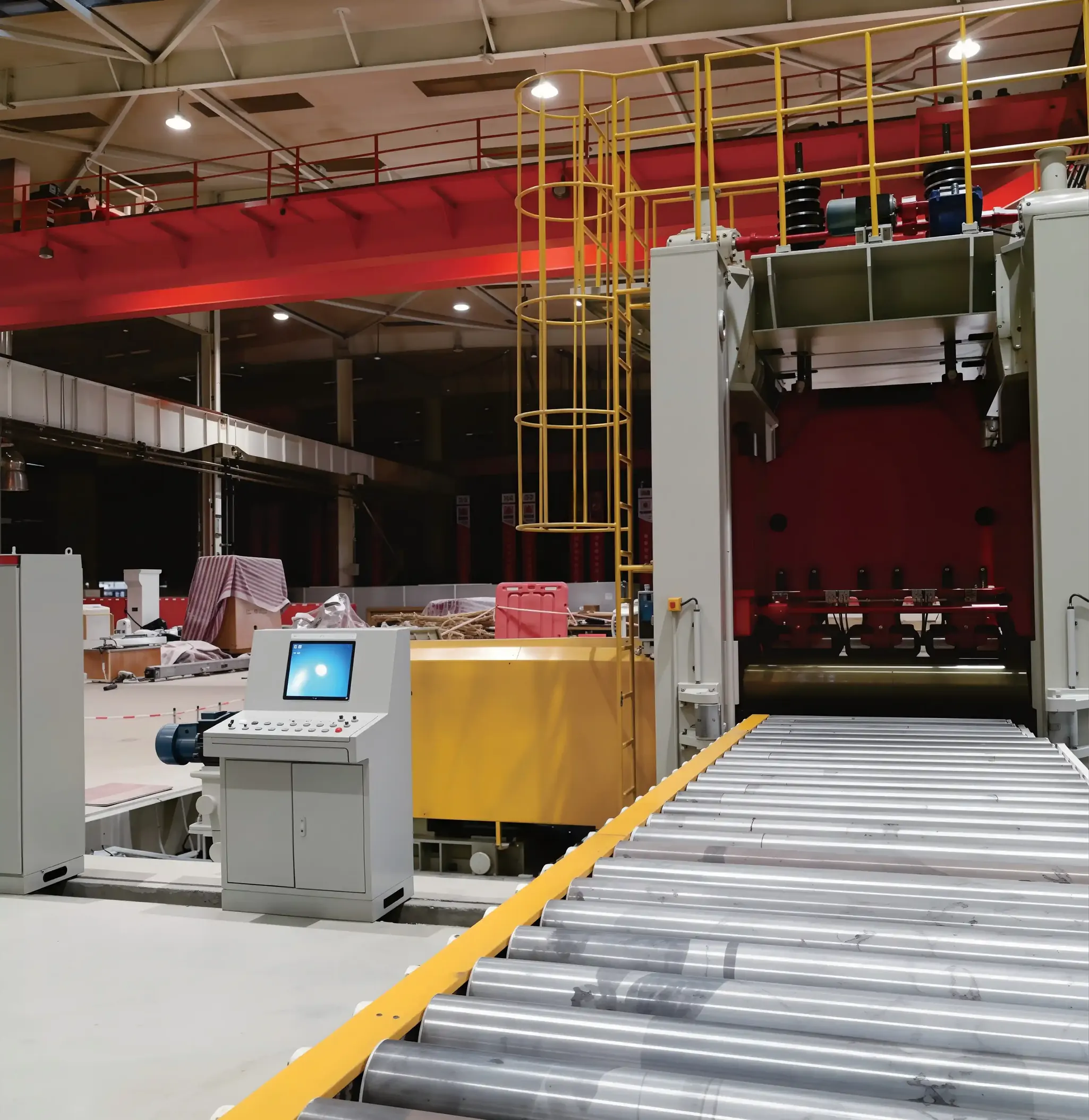

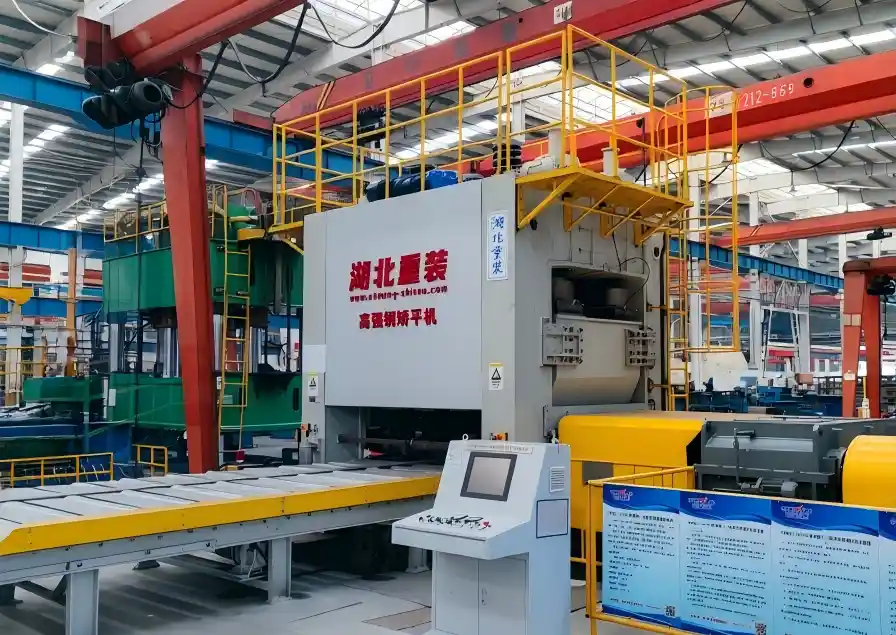

Designed specifically for high-strength steel sheets with yield limits up to 1600 MPa. Advanced roller configuration and pressure distribution system ensures uniform leveling without material damage or surface defects.
Achieves exceptional flatness accuracy of 1.0-1.5 mm/m², eliminating warping and internal stress. Precision-ground 42CrMo alloy steel rollers with hardness HB260-280 ensure consistent performance and long service life.

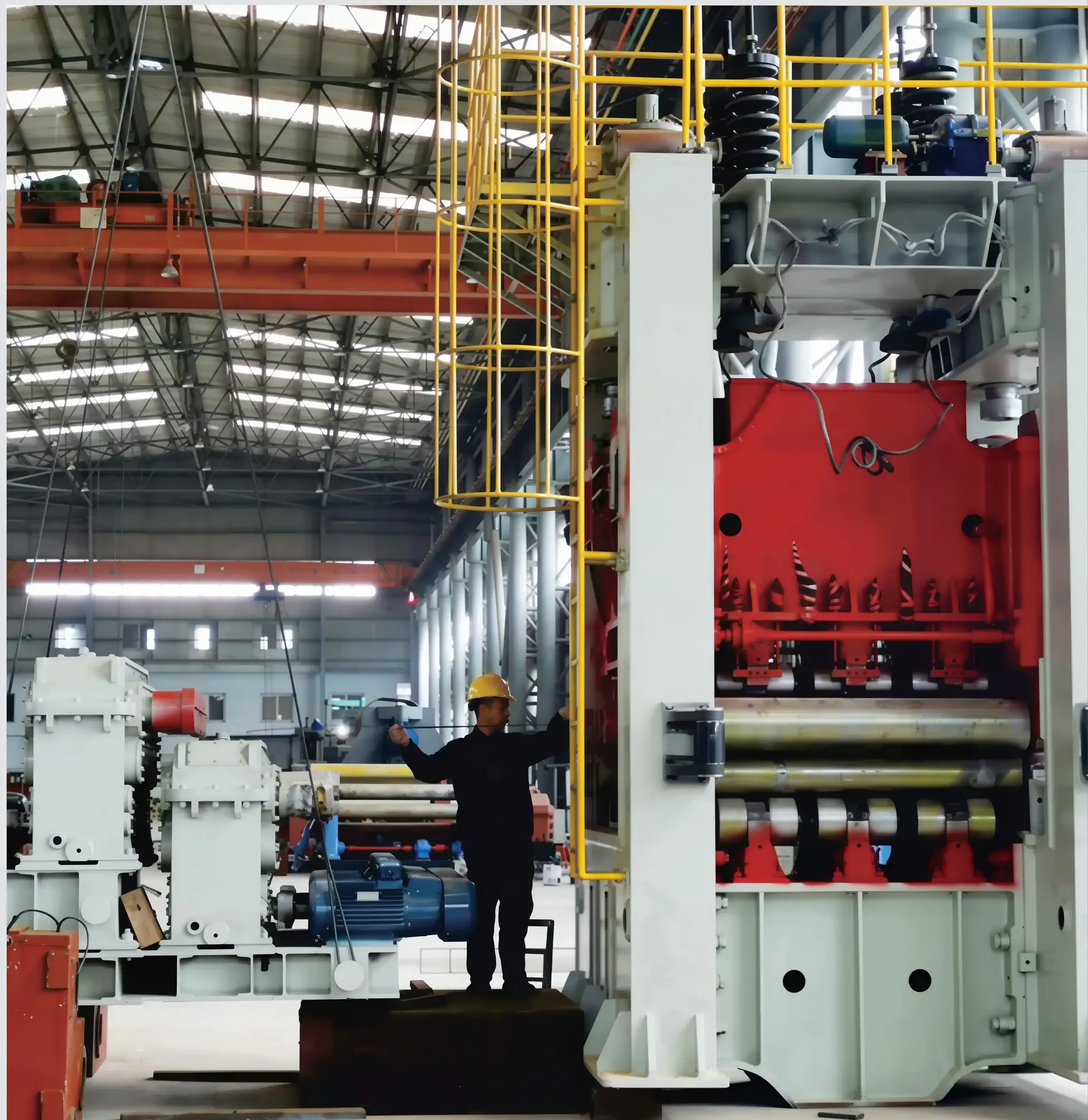

Patented technology of separating roller driving and side roller adjustable design. Multiple rows of support rollers arranged in chess pattern maintain work roller rigidity and effectively level wave bending and scoop-shaped plate deformations.
Full-driven upper and lower roller system with dual motor drive ensures stable operation and emergency braking capability. Soft start device minimizes power grid impact while maintaining low noise and compact structure for continuous production.
Integral inclined iron adjustment mechanism allows manual fine-tuning of upper and lower leveling roller convexity. Easily adapts to correction requirements of various deformation types including wave bending and scoop-shaped plates.
Handles thickness range from 8-120mm and width up to 3000mm. Suitable for construction machinery, automotive manufacturing, and heavy equipment industries. Customizable for larger sizes and faster speeds based on specific requirements.
Reliable dual-motor system ensures stable, efficient operation.
Chess-pattern roller arrangement with adjustable convexity for superior leveling performance.
Heavy-duty welded steel frame construction with stress-relieved design ensures minimal deflection and vibration during high-load leveling operations.
Gcr15 quenched alloy steel rolls with hardness HRC 60-62, precision ground and polished for superior surface finish and long service life.
High-response servo proportional valve with closed-loop feedback system, providing precise roll gap control accuracy up to 0.01mm.
Yihai Controller with touchscreen HMI interface, intelligent parameter calculation, and data management for up to 2,000 material records.
| Model | Useful Width (MM) | Yield Limit (MPA) | Max. Thickness (MM) | Leveling Accuracy (MM/M2) | Speed (MM) |
|---|---|---|---|---|---|
| EZW43-20x1500 | 1500 | 785 | 20 | 1.0-1.5 | 3-6 |
| EZW43-16x2500 | 2500 | 1100 | 16 | 1.0 | 6 |
| EZ43B-8x1500 | 1500 | 1100 | 8 | 1.0 | 6 |
| EZW43BY-8X2000 | 2000 | 1600 | 8 | 1.0 | 3.2-6 |
| EZW43T-120x3000 | 3000 | 400 | 120 | 1.0-1.5 | 2.4-6 |
Larger, special size, faster speed can be customized according to demand
ASTM A516 Gr.70 / 16MnDR, thickness 50-200mm, roundness tolerance ±2mm.
API X80/X120 pipe, thickness 30-150mm, ovality control ±1.5%.
Q345/S355 structural steel, thickness 20-100mm, flat edge tolerance ≤3mm/1000mm.
Q235/A36 storage tank, thickness 8-60mm, high pre-bend accuracy for assembly.
SA516/15Mo3 boiler drum, thickness 40-120mm, precise circularity for flange matching.
304/316L stainless steel cone, 15°~45° adjustable angle, smooth transition surface.
Challenge:Frequent mold changeover caused production bottleneck.
Solution:EZW11S-100×3000 VCD CNC model.
Result:+42% output, scrap rate 15%→3%, payback 14 months.
Challenge:X80 thick plate springback caused diameter out of tolerance.
Solution:EZW11X-150×3200 hydraulic pre-discharge system.
Result:Roundness ±1.2mm, save €180,000 outsourcing cost yearly.
Challenge:Tank shell pre-bend inconsistency led to welding distortion.
Solution:EZW11S-60×3000 horizontal pre-bend CNC correction.
Result:Assembly time -35%, annual capacity 500→650 units.
Minimum diameter varies by model. Entry-level EZW11S-35×2000 achieves 1.5m diameter; heavy-duty EZW11X-200×3200 reaches down to 0.8m. The variable center distance allows 40% reduction versus fixed-geometry machines.
Three independent LVDT position transducers measure upper and lower roller height in real-time. The Siemens PLC compares actual vs. target positions 50 times/second and adjusts hydraulic valve solenoids within ±2mm, maintaining ±0.2mm flatness.
Yes. Standard configuration is for cold rolling (up to 50°C ambient). Hot rolling variant available with 42CrMo rollers rated to 300°C and enhanced oil cooling. Consult engineering for specific hot-roll requirements.
24 months from shipment on parts and labor. Covers manufacturing defects. Consumables (seals, bearings) and routine wear parts excluded. Extended warranty available (36-60 months) at additional cost.
Yes. Optional IoT upgrade adds cloud connectivity. Real-time pressure, temperature, cycle data streamed to EZHONG service portal. Predictive alerts issued 2-4 weeks before component failures (±accuracy 85%).
| Accessory | Lead Time | Function | Value Proposition |
|---|---|---|---|
| Vertical Top Support System | 6 weeks | Support large-diameter coils up to 16m | 150-ton lift capacity, auto tilt with cone angle |
| Lateral Side Support Fixture | 4 weeks | Prevent wide plate lateral drift | Hydraulic automatic correction, match thin sheet processing |
| Automatic Plate Feeding System | 8 weeks | Motorized feeding & positioning | 60% labor saving, positioning tolerance <5mm |
| Hot Rolling Configuration | 10 weeks | 300°C high temperature rolling | Enhanced cooling system, high temperature resistant roller |
| Remote Monitoring & Diagnostics | 6 weeks | Cloud real-time machine data tracking | Predictive maintenance, reduce unplanned downtime 80% |
