| Item | Content |
|---|---|
| Industry | Engineering Machinery |
| Customer | SANY Heavy Industry Co., Ltd. |
| Equipment | High-Strength Plate Leveling Machine |
| Series | EZW43C / EZW43B |
| Application | Engineering Machinery Components |
| Maximum Plate Strength | 1000 MPa |
| Maximum Plate Thickness | 15 mm |
| Maximum Plate Width | 1500 mm |
| Number of Work Rolls | 15 |
Engineering machinery manufacturers use high-strength steel plates for a wide range of structural and functional components. Plate deformation and residual stress can affect subsequent welding, assembly, and overall component quality.
For SANY Heavy Industry Co., Ltd., EZHONG supplied an EZW43C/EZW43B series high-strength plate leveling machine for processing steel plates used in engineering machinery manufacturing.
The equipment is designed for high-strength steel plate leveling, with a maximum specified plate strength of 1000 MPa and a maximum plate thickness of 15 mm.
For this project, the customer required a solution capable of providing:

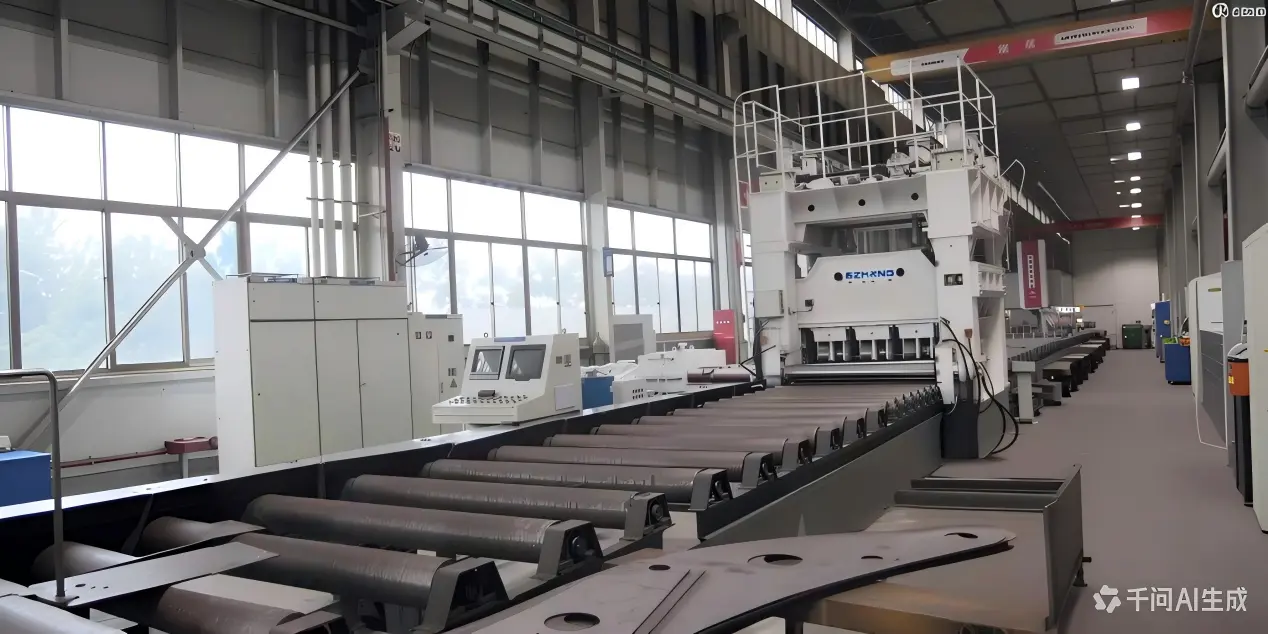

EZHONG provided the EZW43C/EZW43B series high-strength plate leveling machine, designed for leveling high-strength steel plates used in engineering machinery applications.
| Item | Specification |
|---|---|
| Machine Series | EZW43C / EZW43B |
| Model in Technical Data | EZW43B-15x1500.15R 1000 |
| Maximum Plate Yield Limit | 1000 MPa |
| Maximum Plate Thickness | 15 mm |
| Maximum Plate Width | 1500 mm |
| Minimum Plate Thickness | 4 mm |
| Number of Work Rolls | 15 |
| Work Roll Diameter | 175 mm |
| Work Roll Spacing | 185 mm |
| Effective Roll Length | 1700 mm |
| Back-up Roll Columns | 3 |
| Back-up Roll Spacing / Diameter | 370 / 340 mm |
| Pressing Stroke | +45 to -17 mm |
| Pressing Speed | 25 mm/min |
| Maximum Swing | ±5 mm |
| Rising Height | +130 mm |
| Leveling Speed | 3.0-8.0 m/min |
| Correction Accuracy | ≤1.0-1.5 mm |
For demanding engineering machinery applications, EZHONG focuses on the precise leveling of high-strength steel plates and stable production performance.
Machine Assembly
Roller System
Leveling Process
Plate Leveling
Quality Inspection
Leveled Plate
EZHONG provides CNC plate leveling machines for high-strength steel plates used in engineering machinery and other demanding industrial applications.
