| Item | Content |
|---|---|
| Industry | Pressure Vessel Manufacturing |
| Customer | ZCM (Suzhou) Heavy Equipment Co., Ltd. |
| Location | China |
| Project Type | Pressure Vessel Manufacturing |
| Machine Model | XW11S-270x3500 |
| Equipment Type | Heavy-duty Symmetrical Three-roll Plate Rolling Machine |
| Capacity | 270x3500 mm |
| Status | Delivered & In Production |

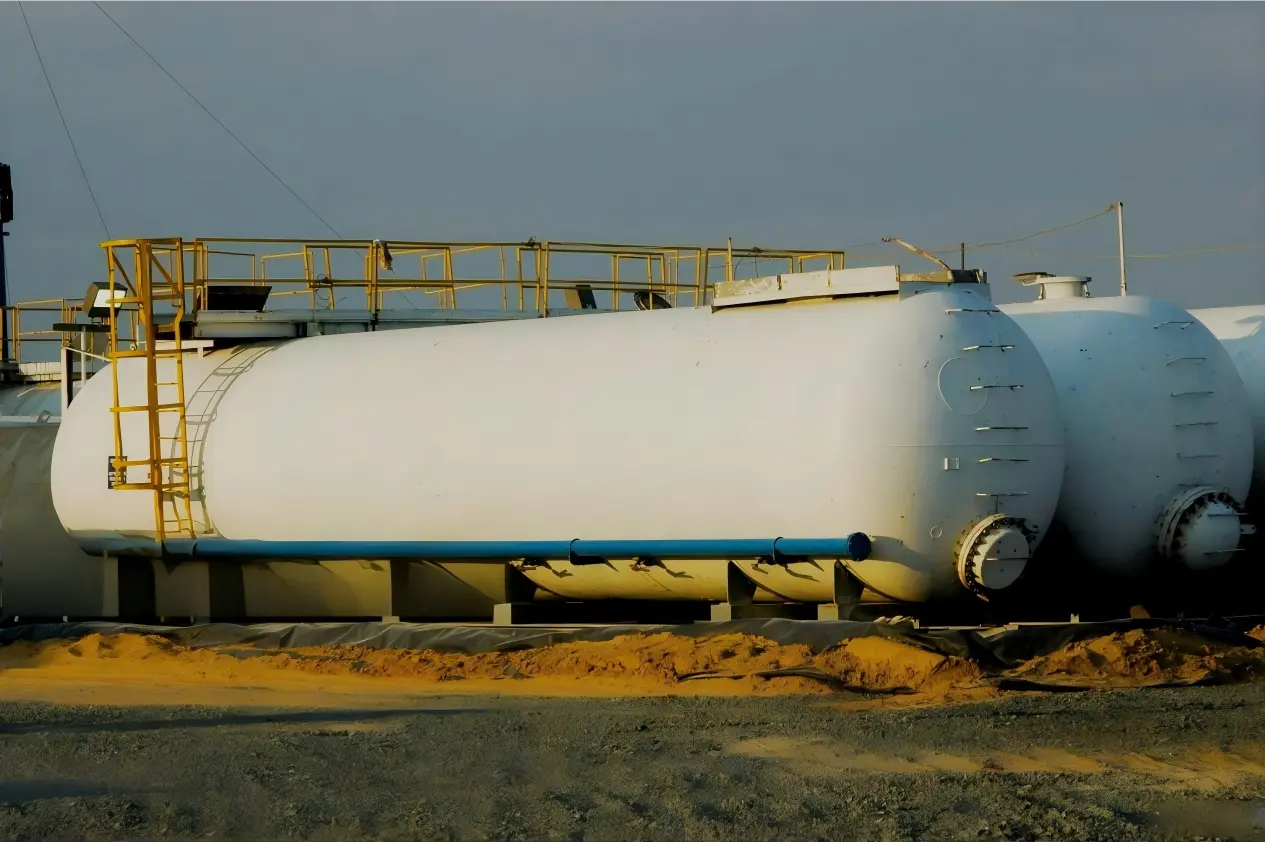

Pressure vessel manufacturing requires extremely high standards for plate forming accuracy, structural reliability, and production consistency.
As a professional manufacturer of heavy industrial equipment, ZCM (Suzhou) Heavy Equipment Co., Ltd. required a powerful plate rolling solution capable of processing ultra-thick steel plates for pressure vessel shells, storage tanks, and other cylindrical components.
To support ZCM's advanced manufacturing requirements, EZHONG supplied the XW11S-270/360x3500 Heavy-duty Plate Rolling Machine, specially designed for ultra-thick plate forming applications.

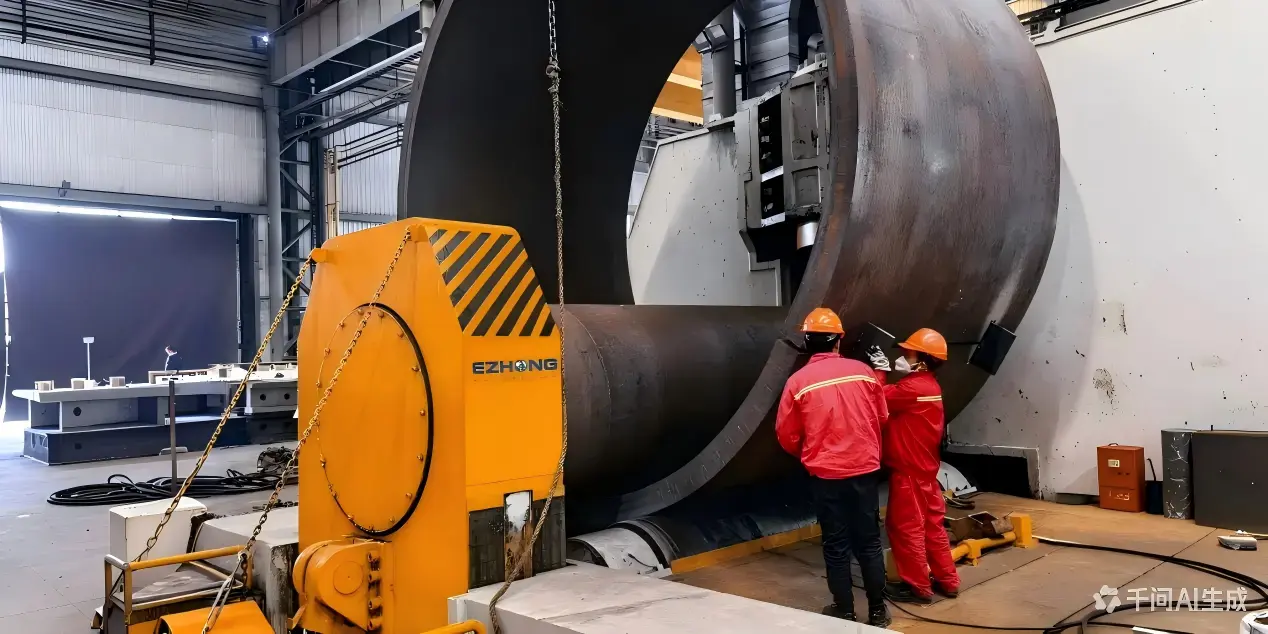

With its high-rigidity structure, powerful hydraulic system, and optimized rolling technology, the machine provides reliable forming capability for ultra-thick steel plates, excellent pre-bending performance, accurate cylindrical shell geometry, and stable operation under heavy-duty production conditions.
For this project, the customer required a solution capable of providing:
EZHONG provided a customized heavy-duty plate rolling solution based on the XW11S-270/360x3500, designed specifically for pressure vessel manufacturing.
| Item | Specification |
|---|---|
| Machine Model | EZXW11S-270x3500 |
| Machine Type | Heavy-duty Symmetrical Three-roll Plate Rolling Machine |
| Maximum Symmetrical Rolling Thickness | 270 mm (Cold Rolling) |
| Maximum Pre-bending Thickness | 240 mm (Cold Rolling) |
| Plate Yield Strength | 235 MPa |
| Maximum Workpiece Diameter | Φ4500 mm |
| Maximum Plate Width | 3500 mm |
| Upper Roll Diameter | 1460 mm |
| Bottom Roll Diameter | 850 mm |
| Lower Roll Center Distance | 1700 mm |
| Rated Pressing Force | 6000 tons |
ZCM selected EZHONG based on our extensive experience in manufacturing heavy-duty plate rolling equipment for critical industrial applications.

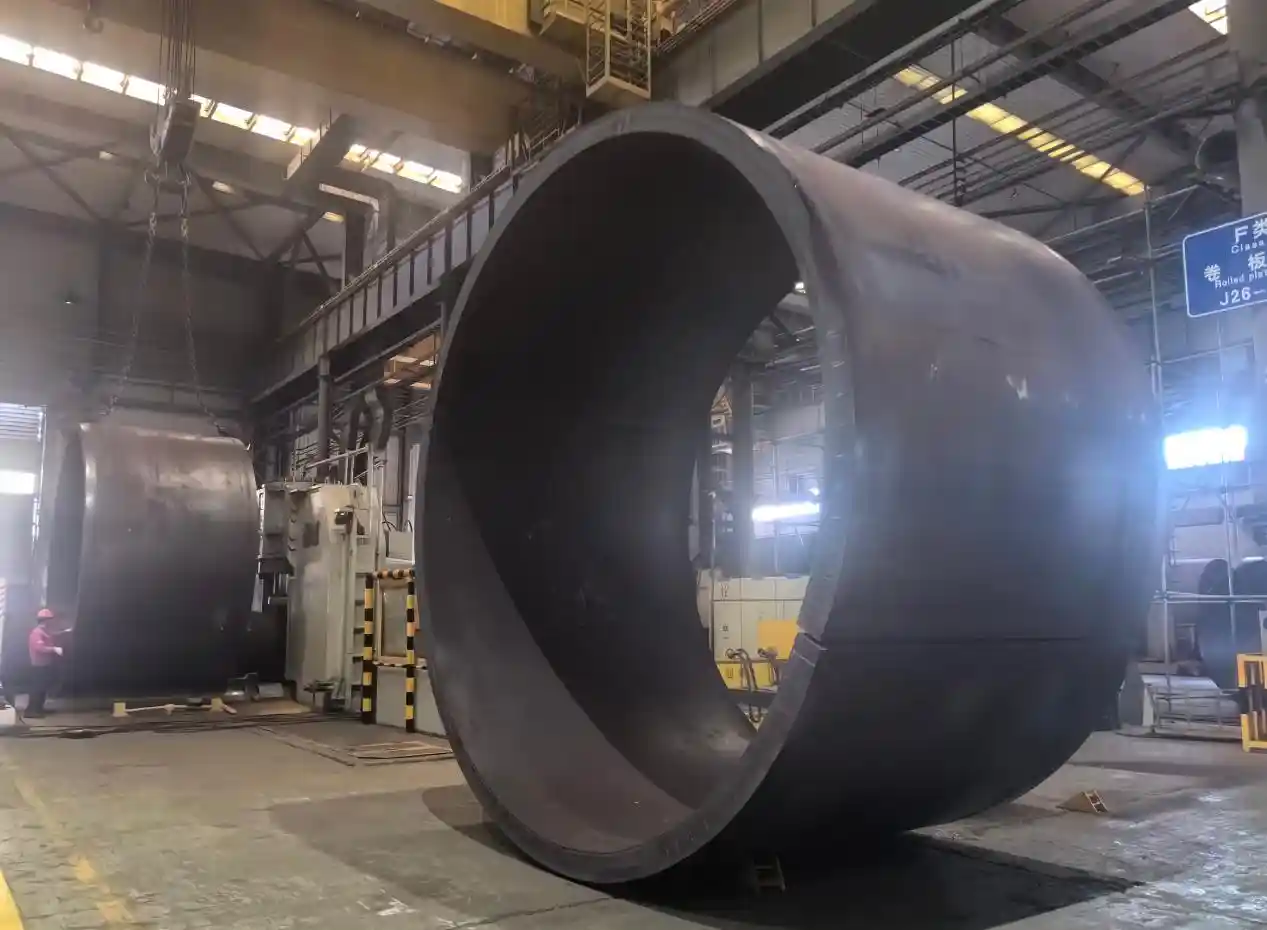

Formed Shell

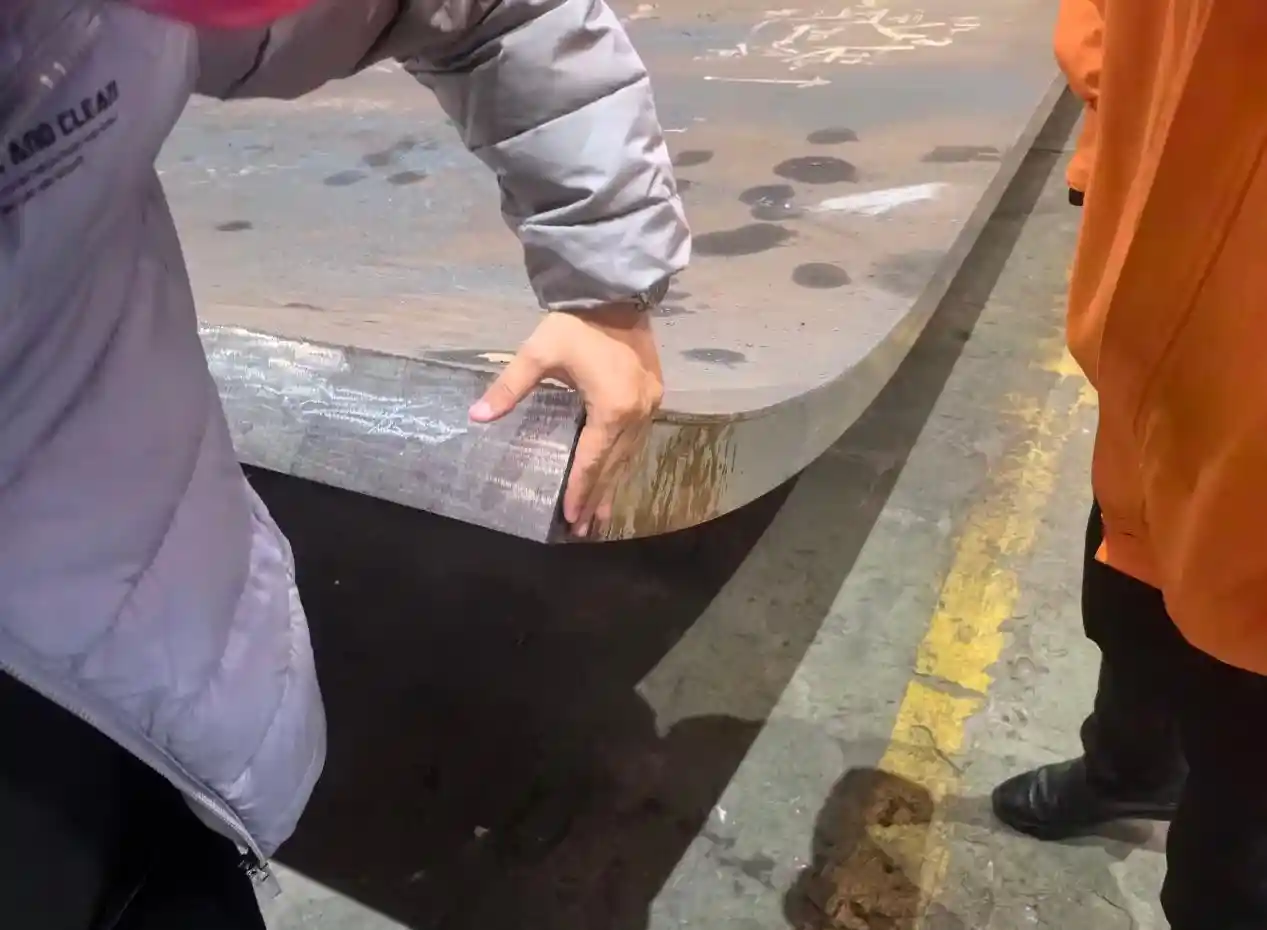

Plate Inspection

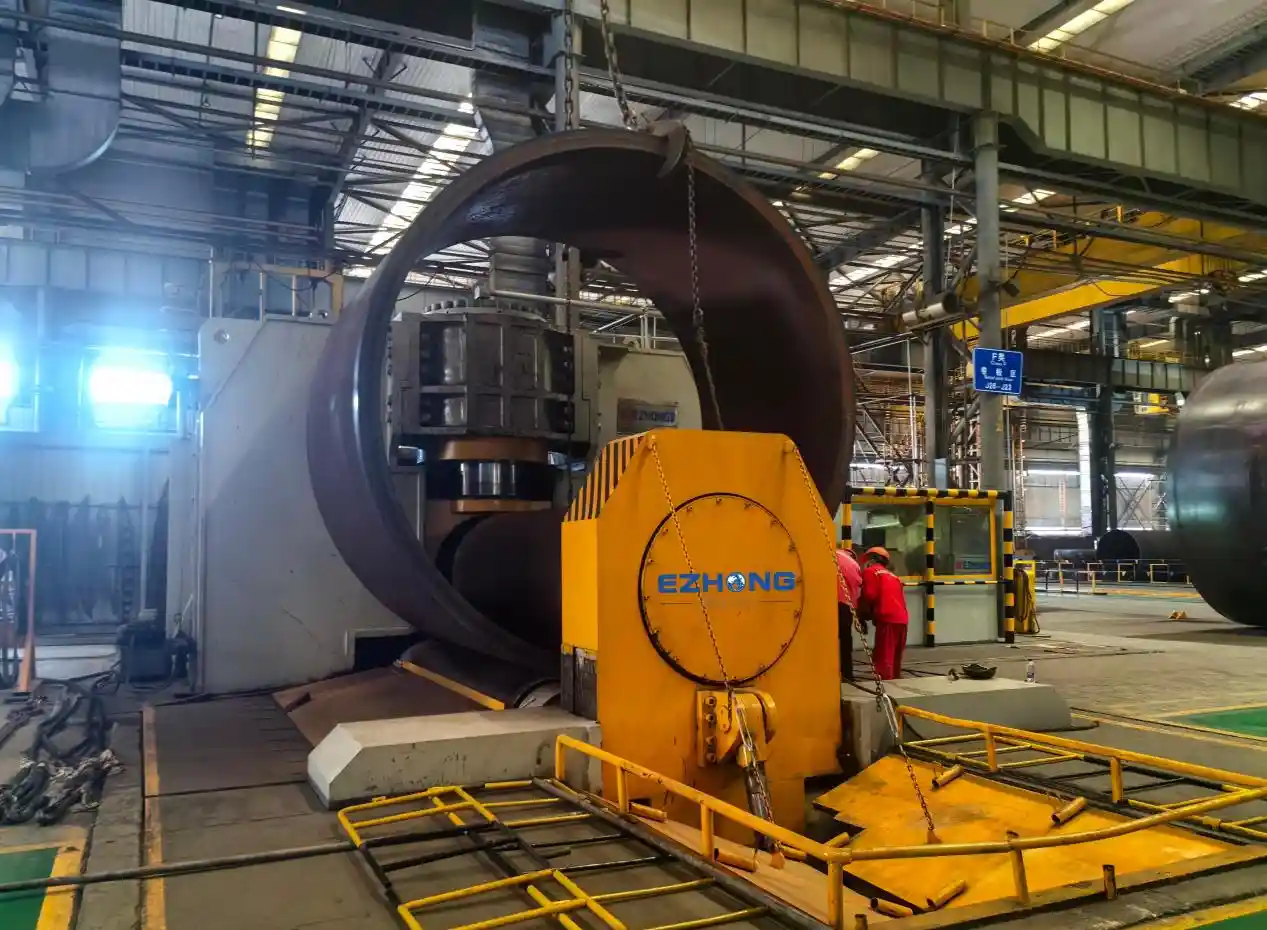

Rolling Process

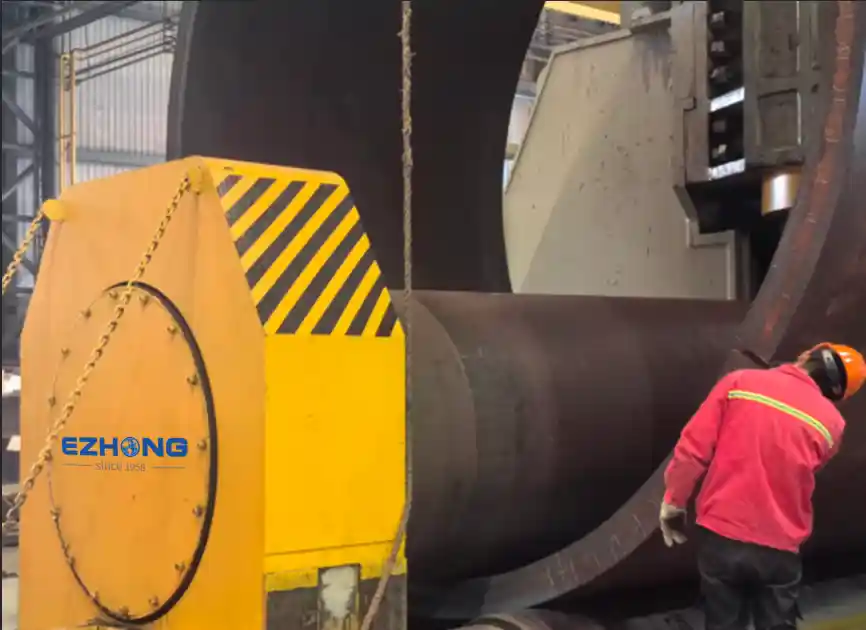

Plate Forming

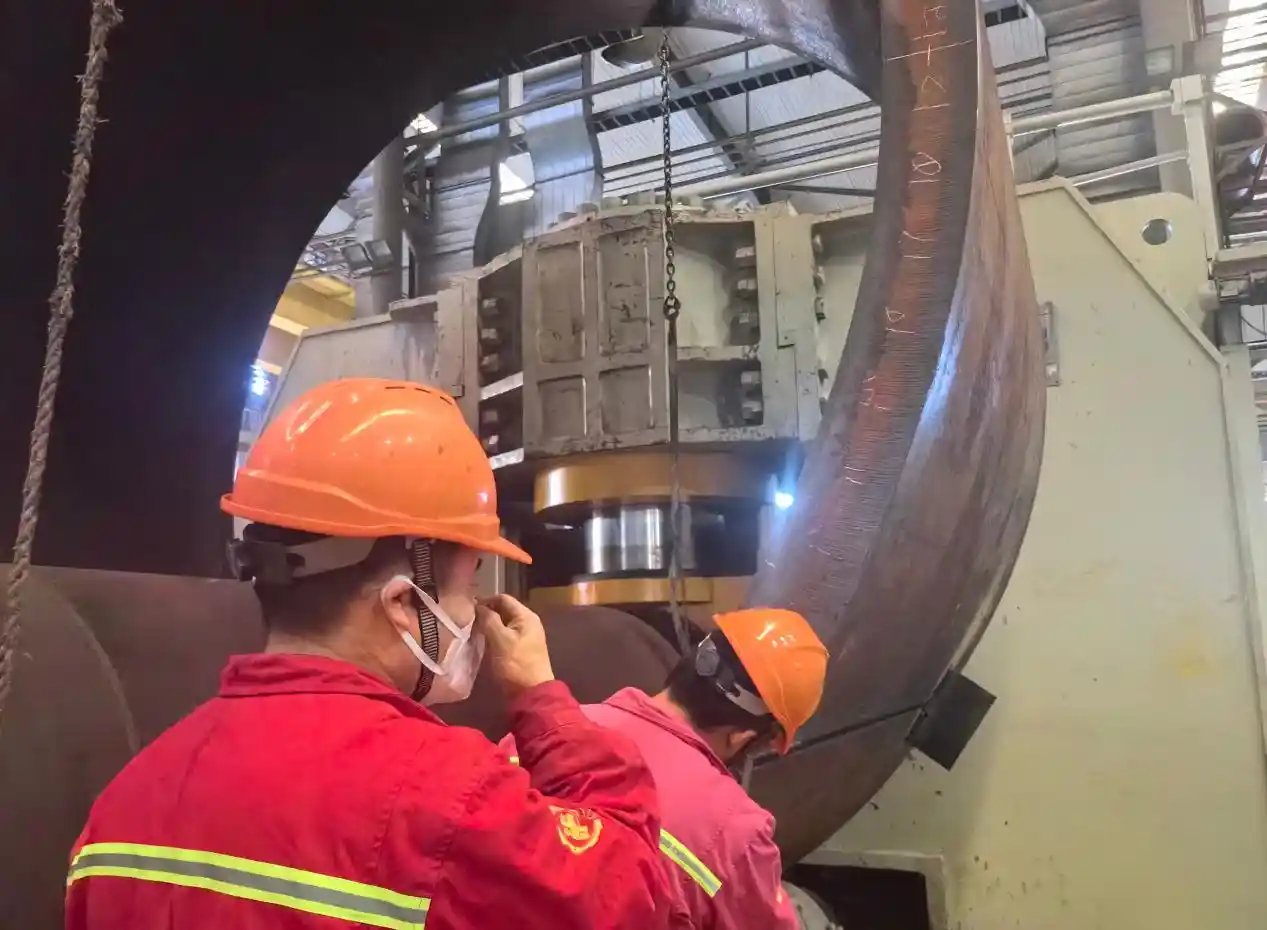

Precision Rolling

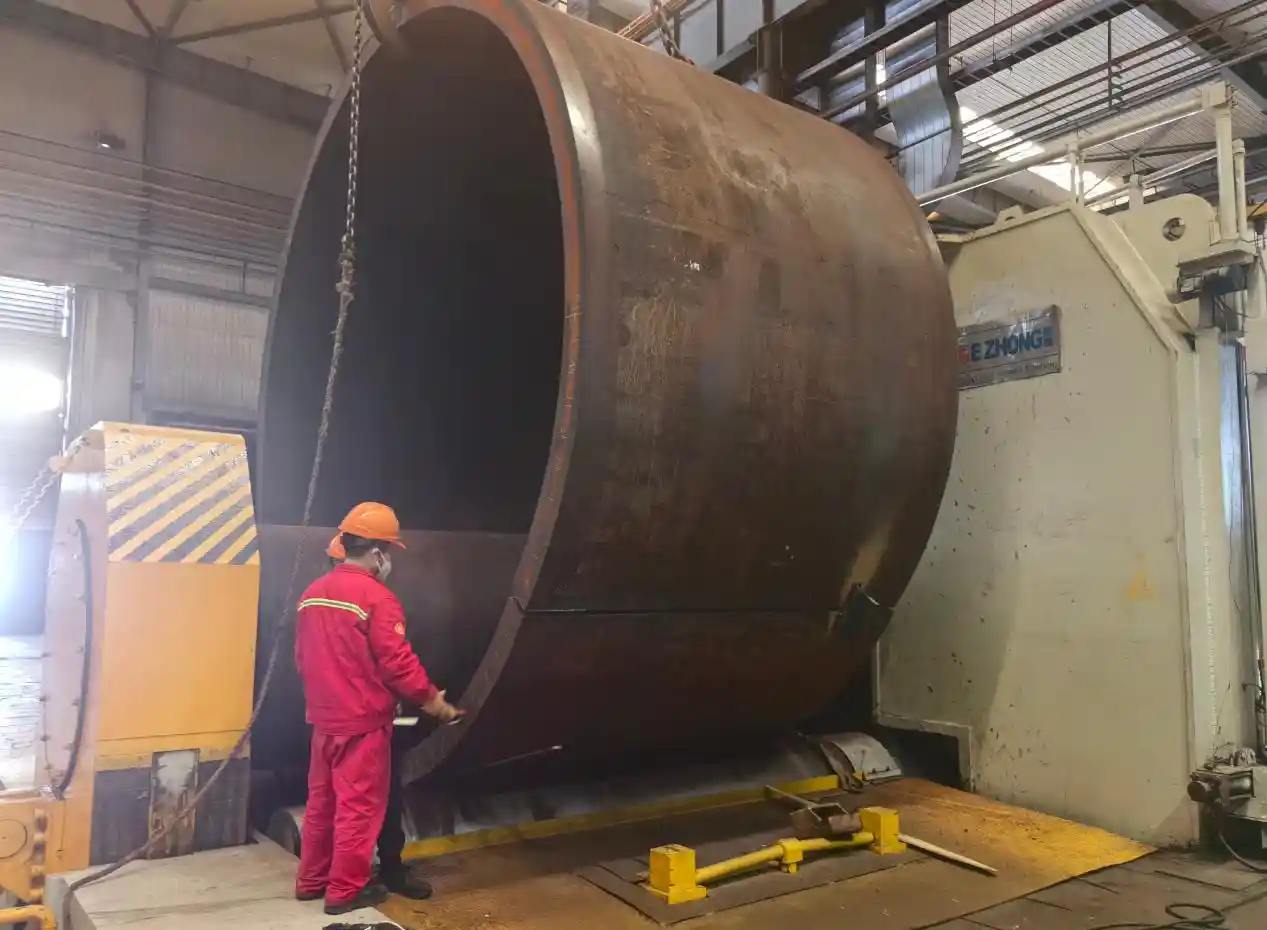

Final Forming
From pressure vessels and storage tanks to heat exchangers and heavy industrial equipment, EZHONG provides customized plate rolling solutions designed for demanding manufacturing requirements.
