| Item | Content |
|---|---|
| Industry | Steel Structure |
| Customer | JSL |
| Location | India |
| Equipment | 13-Roll CNC Hot Plate Leveller |
| Machine Model | EZW43V |
| Application | Steel Plate Levelling |
| Tested Plate Thickness | 40 mm |
| Tested Plate Width | 1650 mm |
| Tested Plate Strength | 1000 MPa |
For steel structure manufacturing, plate flatness directly affects subsequent fabrication processes and the quality of finished components. As plate thickness and material strength increase, stable and precise leveling becomes increasingly important.
JSL required a reliable plate leveling solution for its steel structure manufacturing applications. Based on the customer's requirements, EZHONG designed and manufactured a 13-roll CNC Hot Plate Leveller, combining a rigid machine structure, CNC-controlled leveling, and advanced work-roll drive technology.
The equipment was developed to provide stable and accurate leveling performance for medium and heavy steel plates.
Before shipment, EZHONG conducted a complete commissioning and leveling test at its factory. During the test, the machine successfully processed a 40 mm thick, 1650 mm wide steel plate with a strength of up to 1000 MPa, with the final leveling result controlled within 5 mm.
The successful test verified the machine's performance under the customer's specified working conditions and formed an important part of the project acceptance process.
For steel structure manufacturing, JSL required a plate leveling machine capable of providing:

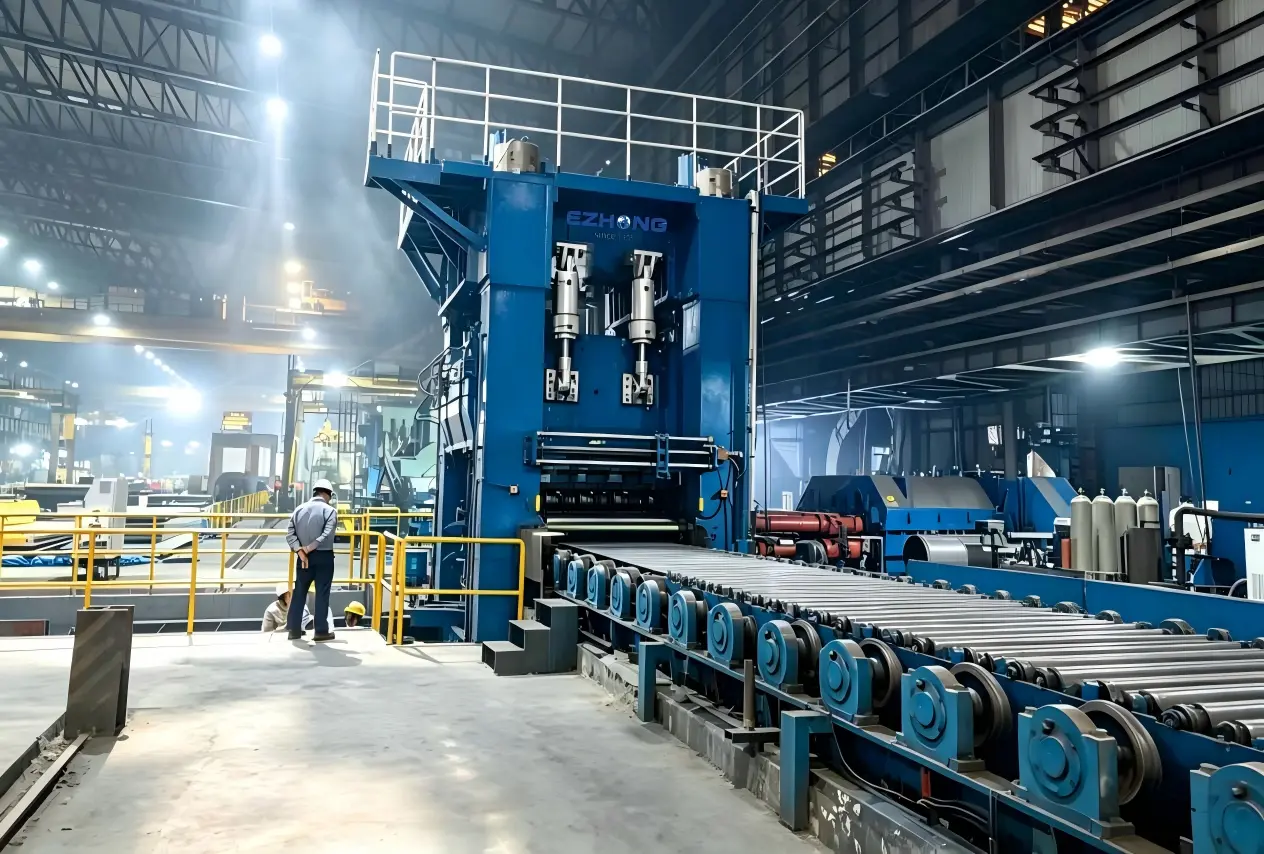

Based on JSL's requirements, EZHONG designed and manufactured a 13-roll CNC Hot Plate Leveller.
| Item | Specification |
|---|---|
| Machine Model | EZW43V |
| Equipment Type | 13-Roll CNC Hot Plate Leveller |
| Control System | CNC + PLC |
| Number of Work Rolls | 13 |
| Display | High-Precision Touch Screen |
| Drive Technology | Patented Grouped Drive |
| Test Plate Thickness | 40 mm |
| Test Plate Width | 1650 mm |
| Test Plate Strength | 1000 MPa |
| Leveling Result | Within 5 mm |
| Test Location | EZHONG Factory |
Verifying Performance Before Shipment
Before shipment, EZHONG conducted a commissioning and leveling test at its factory according to JSL's requirements.
The test plate was:
The leveling process was controlled by the CNC system according to the preset parameters. The final plate was inspected after leveling, and the leveling result was controlled within 5 mm.
The successful test provided direct verification of the equipment's leveling performance before shipment.

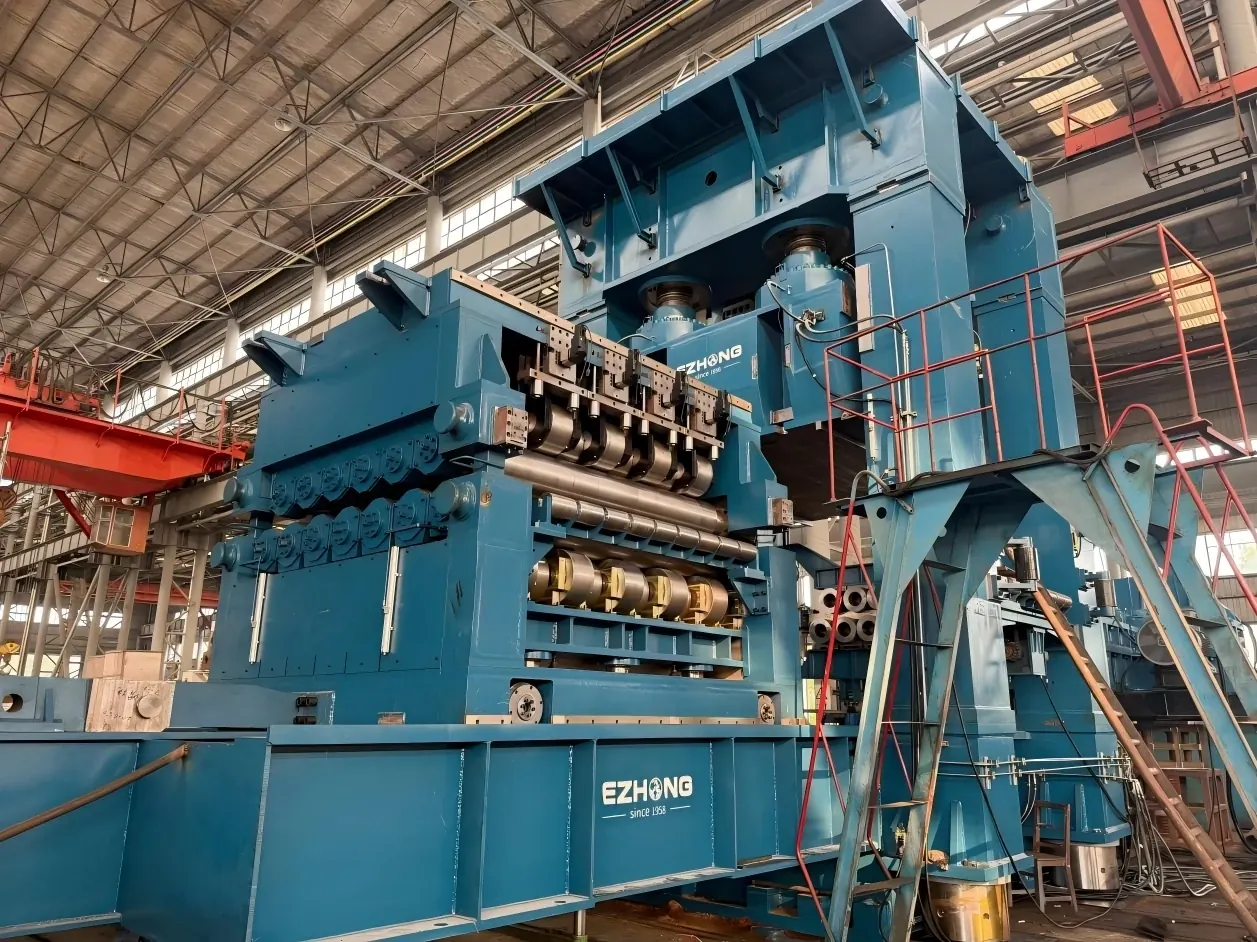

Heavy-Duty Press

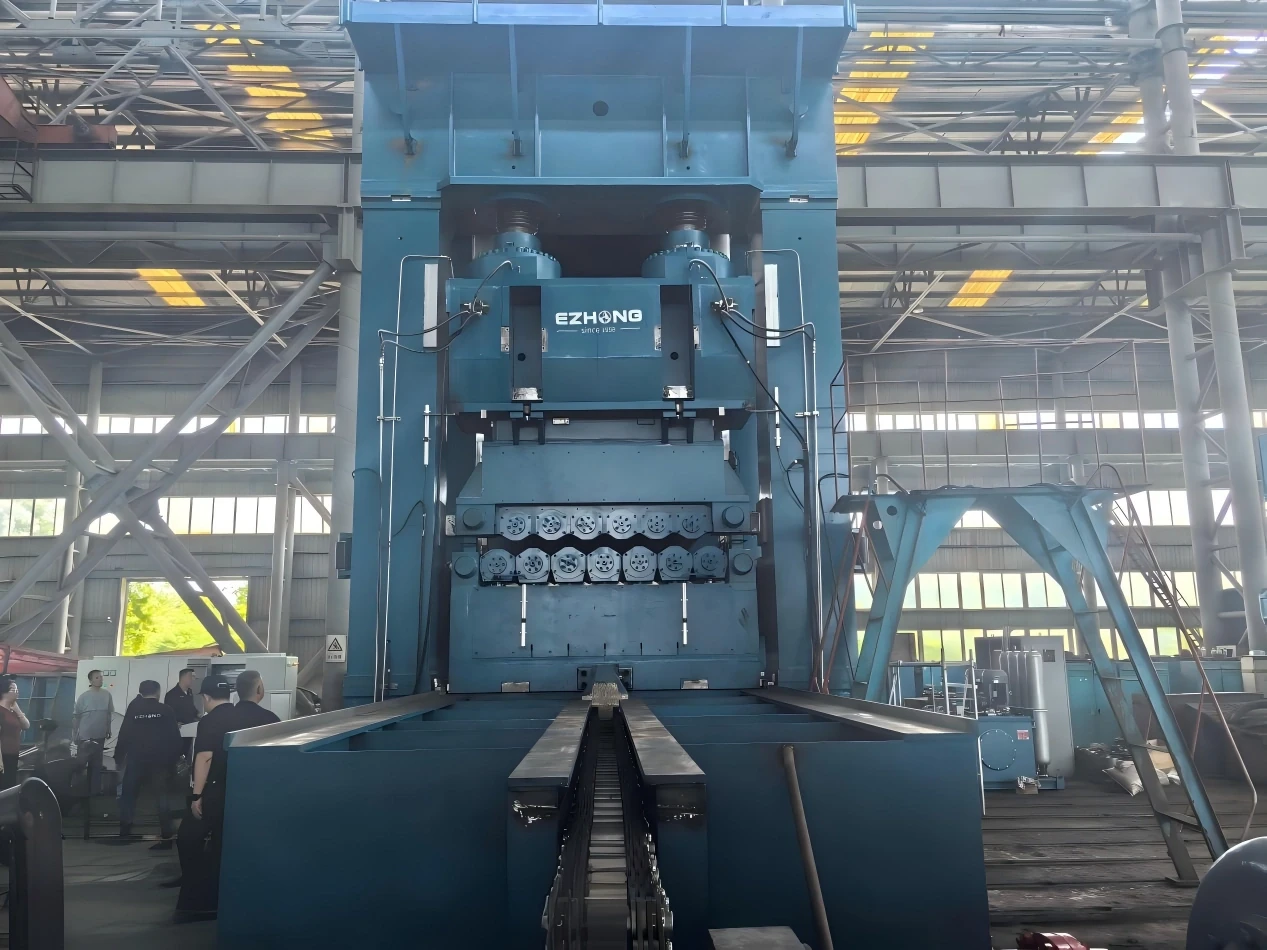

Pressing Unit

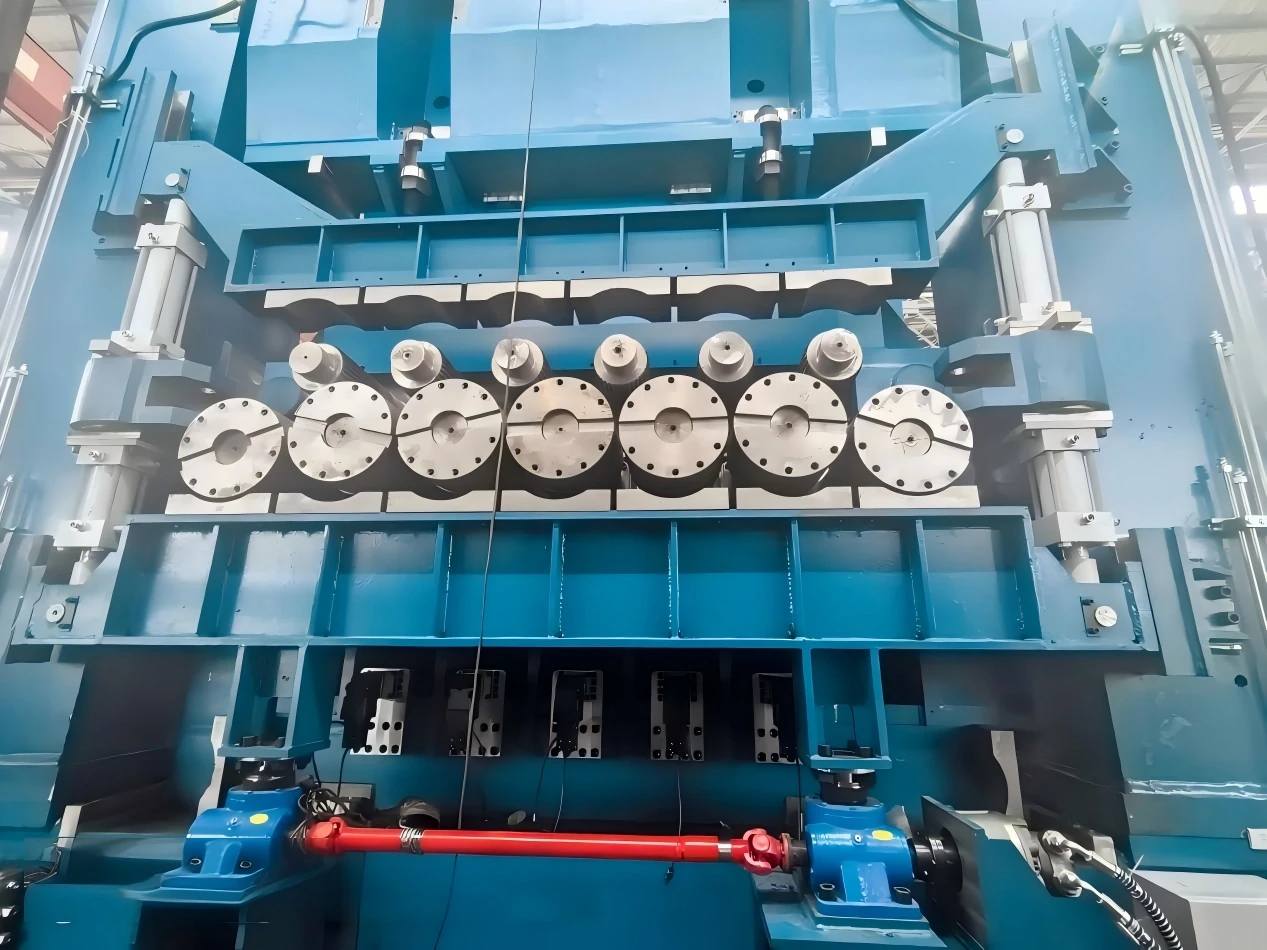

Working System

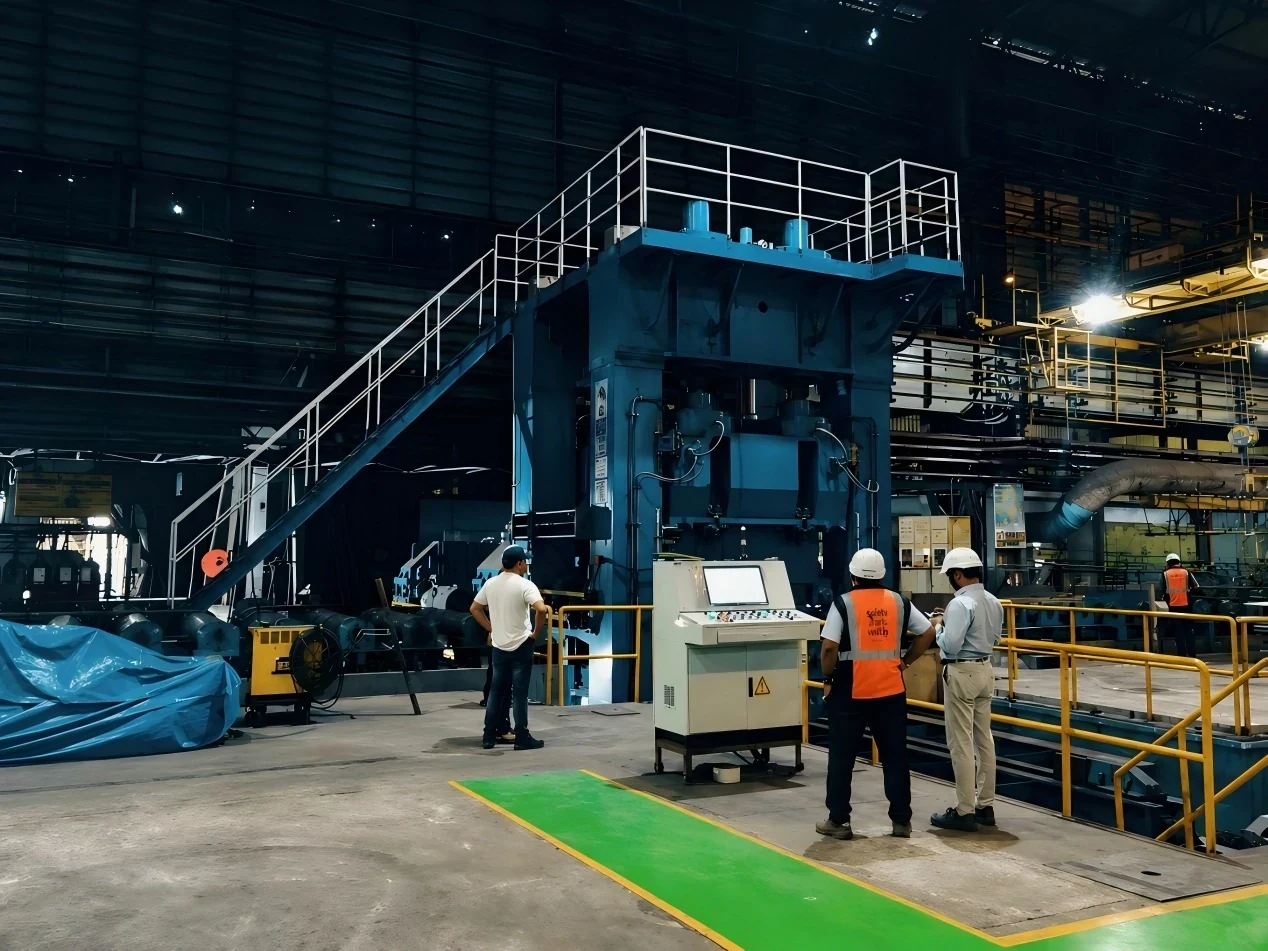

Machine Installation

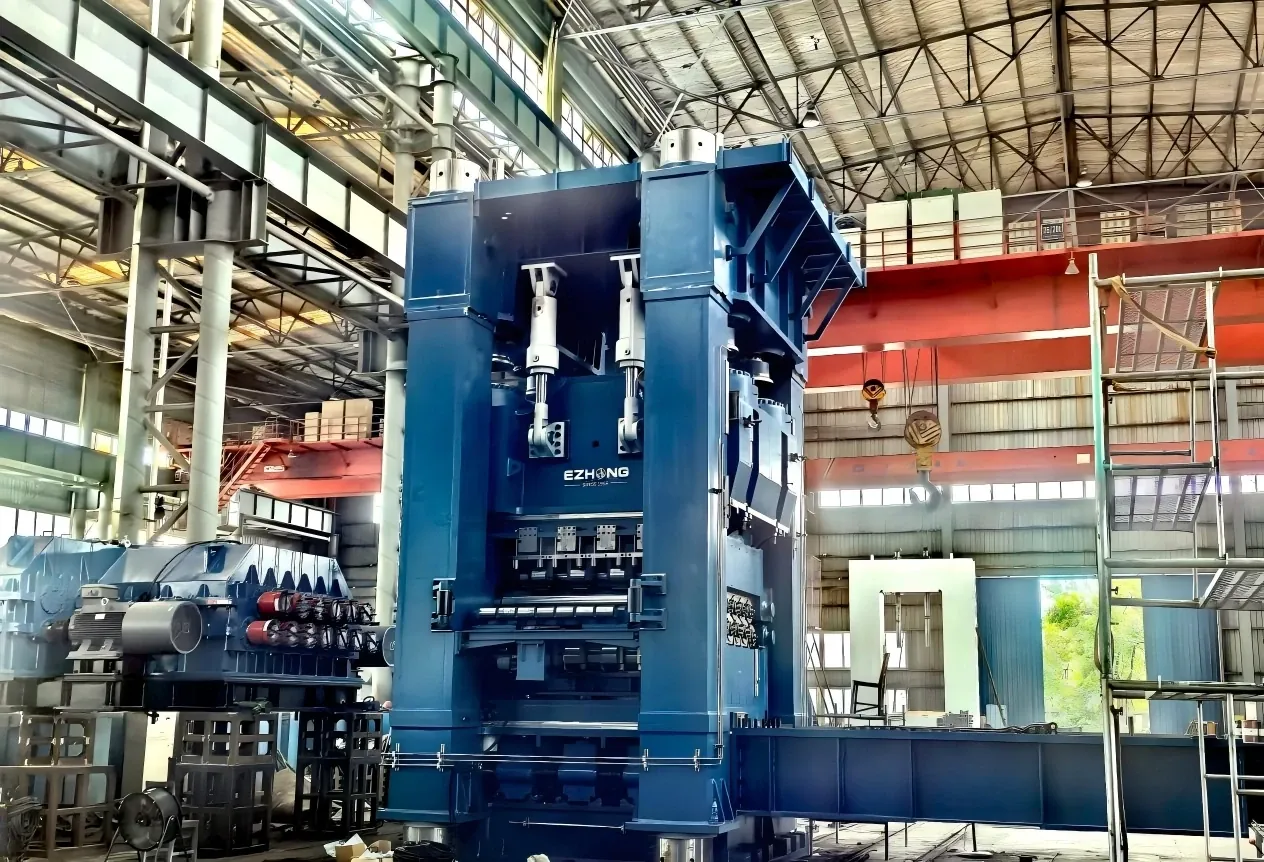

Pressing Operation
Project Handover
EZHONG provides CNC plate levelling machines designed for accurate, stable, and repeatable processing of medium and heavy steel plates in steel structure manufacturing.
