| Item | Content |
|---|---|
| Customer | PT. MECO INOXPRIMA |
| Country | Indonesia |
| Industry | Tank Manufacturing / Engineering Construction |
| Equipment | EZW11SXY-20x12000 Three-Roll Plate Rolling Machine |
| Machine Type | Three-Roll Plate Rolling Machine |
| Max. Plate Width | 12,000 mm |
| Max. Plate Thickness | 10 mm |
| Plate Yield Strength | 345 MPa |
| Full-Load Workpiece Radius | R445 mm |

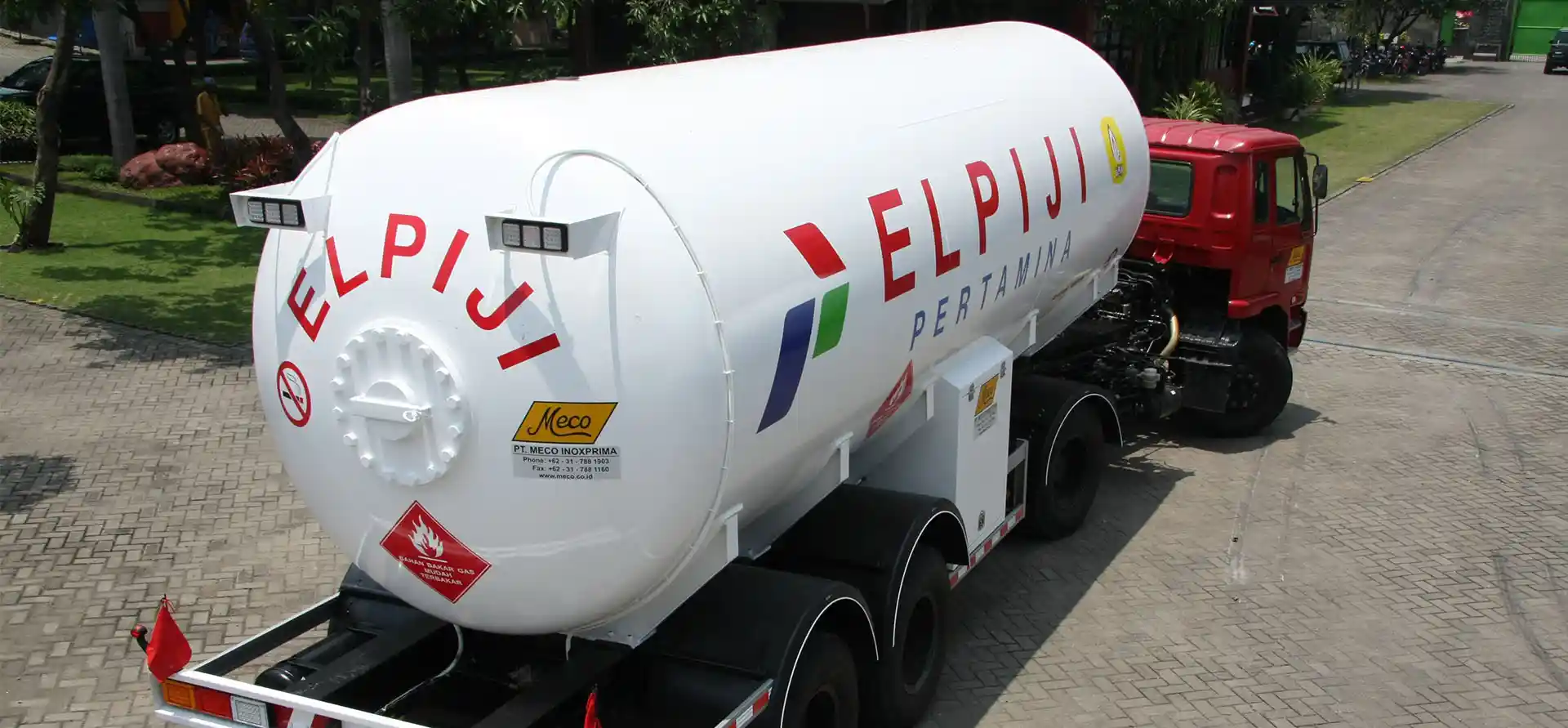

MECO Corporation is an Indonesian engineering company based in Jakarta, providing mechanical and electrical engineering, design and construction services for large-scale projects.
Its business covers engineering and construction applications including commercial buildings, hotels, apartments and other major projects, requiring reliable equipment for the fabrication of large steel structures and cylindrical components.
The EZW11SXY series is designed for demanding plate bending applications where large working width, stable forming force and reliable cylindrical forming performance are required.

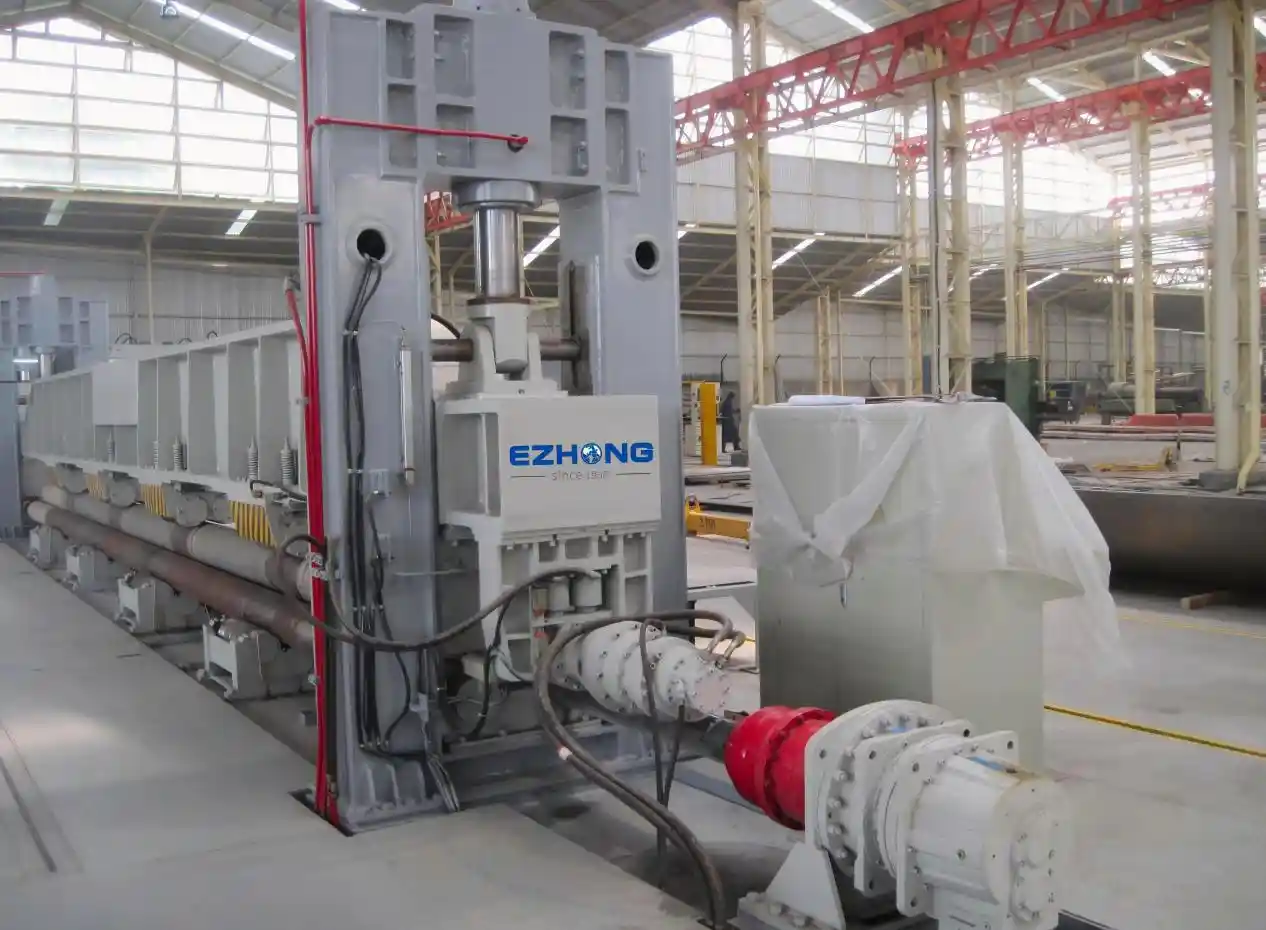

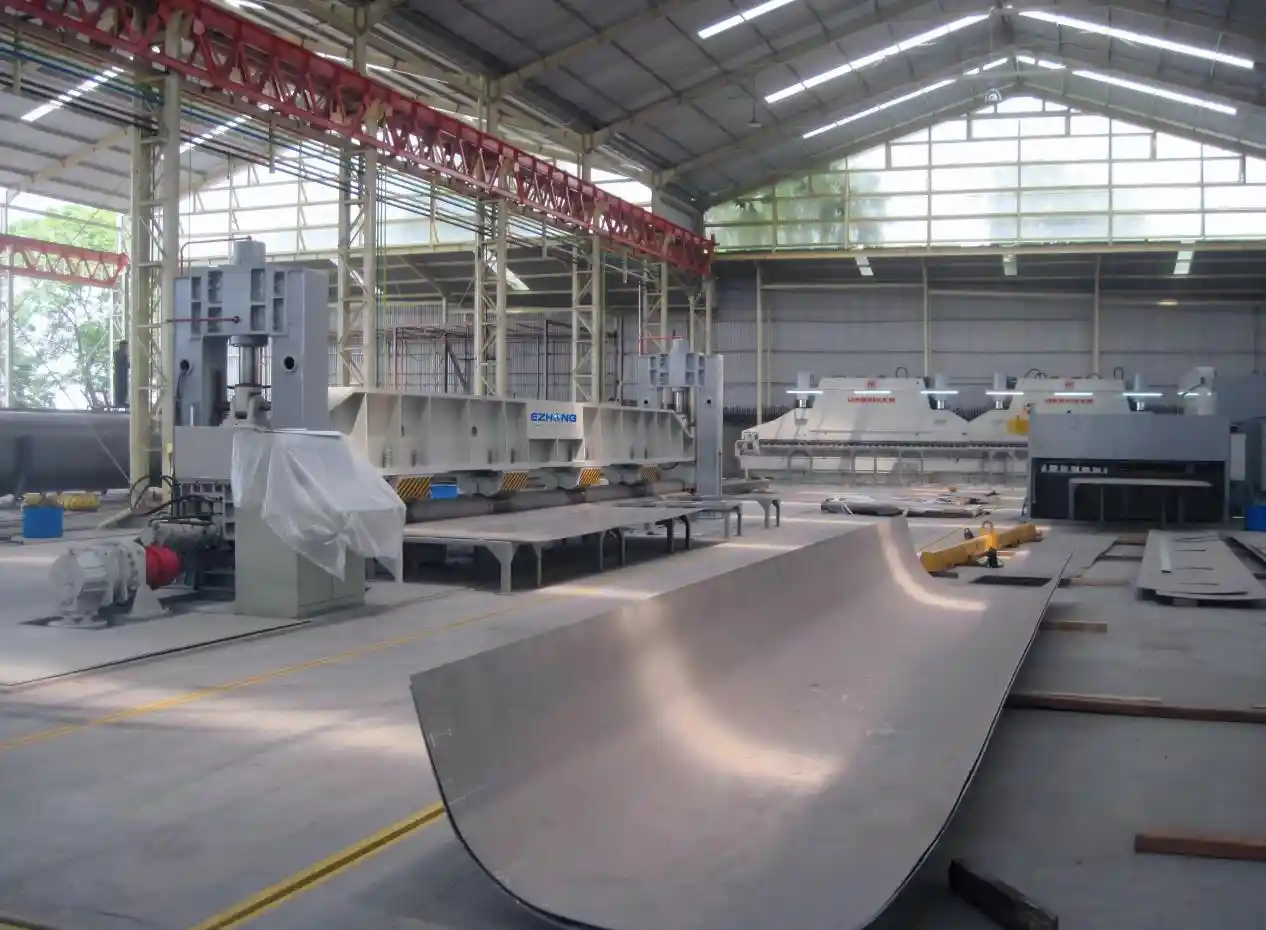

For MECO, EZHONG supplied the EZW11SXY-20x12000 three-roll plate rolling machine, configured for large-format plate rolling with a maximum working width of 12,000 mm.
The machine is capable of processing plates up to 10 mm thickness at 345 MPa yield strength, with a full-load workpiece radius of R445 mm according to the project specifications.
For this project, the customer required a solution capable of providing:
EZHONG supplied the EZW11SXY-20x12000 three-roll plate rolling machine configured for large-format tank section fabrication.
| Item | Specification |
|---|---|
| Specifications | 10x12000mm |
| Maximum thickness of bending plate | 10mm |
| Maximum width of the plate | 12000mm |
| Plate yield limit | 345MPa |
| Workpiece diameter at full-load condition | R445mm |
| Upper roller diameter | Ø300mm |
| Lower roller diameter | Ø240mm |
| Plate speed | 4.2m/min |
| Main motor power | 18.5x2 kW |

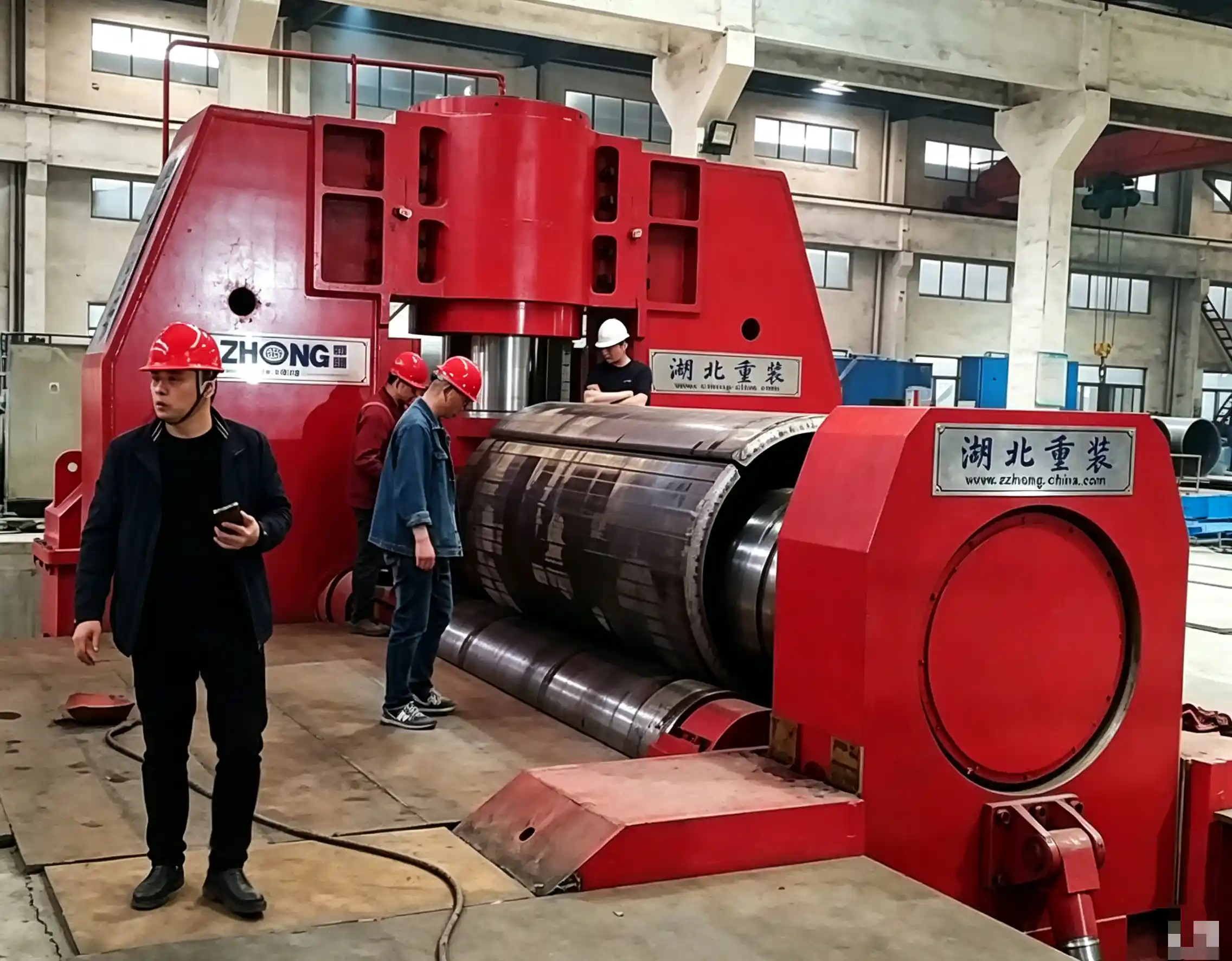

EZHONG designs and manufactures customized plate rolling machines for large-format cylindrical forming, from conventional tank fabrication to heavy-duty industrial applications.
